Specifications

“Recording Server Solution”

www.we/jointfilesconvert/417248/bgateinc.com

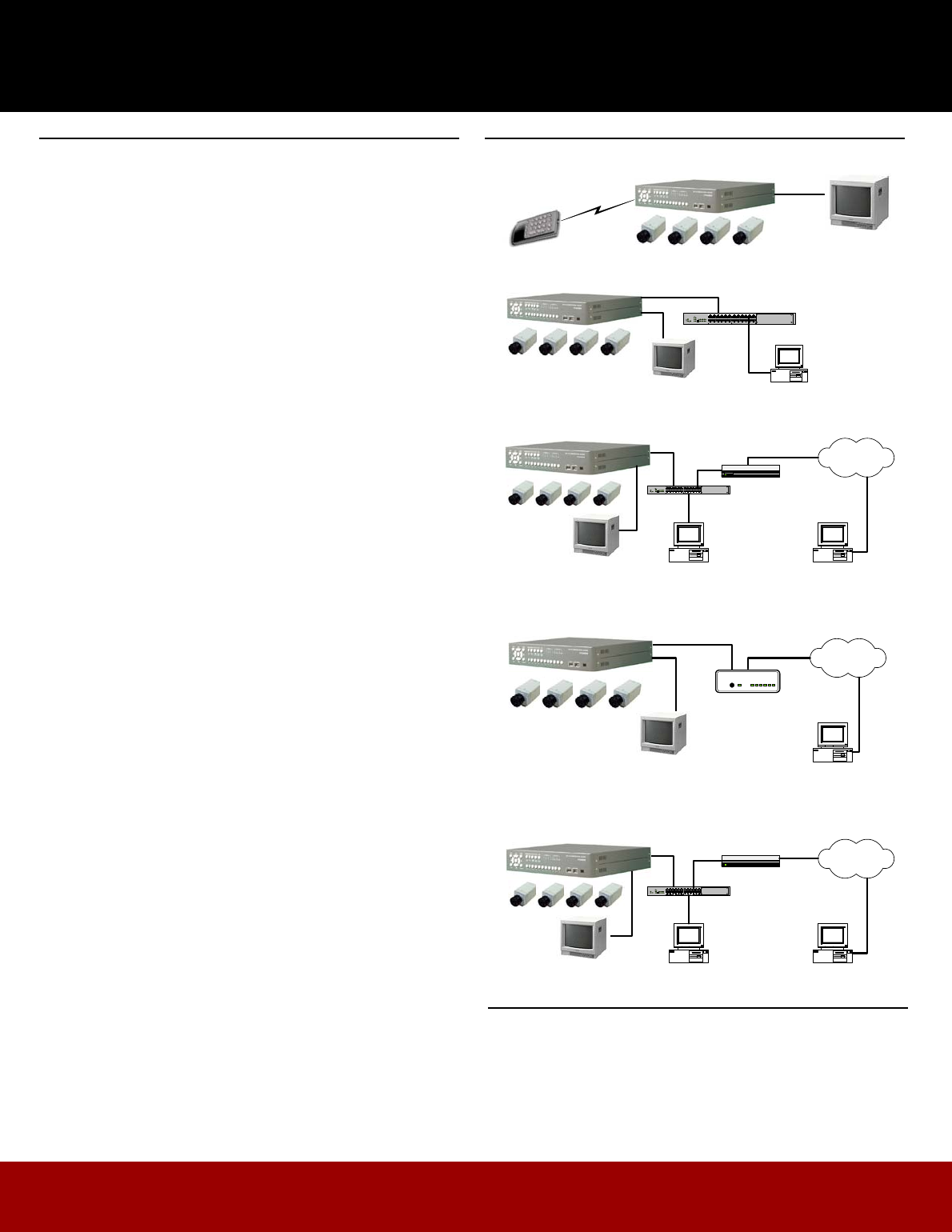

Specifications Network Configuration

1. Off-line Configuration

CCTV Monitor

IR Remote

Controller

2. Connection on LAN

DVrManager

123456

7 8 9 101112

12x

10x

11x

Ethern et

12x

10x

11x

HUB

CCTV Monitor

3. Connection on Internet dedicated line

DVrManager

Internet

123456

789101112

12x

10x

11x

Ethernet

12x

10x

11x

HUB

DVrManager

Router

CCTV Monitor

4. Connection on xDSL / Cable Modem line

DVrMana

Internet

RS CS TR RD TD CD

TALK / DATA

TALK

xDSL / Cable

Modem

CCTV Monitor

5. IP Sharing with other device on xDSL / Cable Network

DVrManager

Internet

123456

789101112

12x

10x

11x

Ethernet

12x

10x

11x

HUB

DVrManager

xDSL/Cable

Modem Router

CCTV Monitor

Data (A Still Image) Copy

PnP USB storage (Compact Flash,

Smart Media, Memory Stick, SD Card)

Displaying Performance (on 360X243)

Frame Rate on CCTV Monitor:

Analog Video: Max. 120fps(NTSC) /100(PAL)

IP Video: Max. 60fps

Frame Rate on PC

Analog & IP Video: Total Max. 60fps

Display Channel:

Live Monitoring: 1, 4, 9, 13 and 16Ch mode

Playback: 1 and 4Ch mode

Misc.

Play speed: 1x, 2x, 4x, 8x, 16x (FDW & REV)

Supports Step-Forward, Step-Reverse.

Instant data access based on time and event log

Digital Zoom

2 times digital zoom (Live & Playback Mode)

Event Triggered Pop-up Video

Triggered by motion detection or sensor input

PTZ Control

Ports: RS232, RS485/RS422

Local User: Front panel push button & IR

Remote (controls IP video channels as well)

Remote User: On-the-screen PTZ control on PC

Preset: 8 points per channel

Group: 1 group per channel

‘Return Home Position’ support

Sensor Inputs and Alarm Outputs

Software-controlled 4 sensor inputs

Software-controlled 4 alarms outputs

Audio Recording and Playback

Input: 1Ch, line-in, 1Vpp

Output: 1Ch, line-out, 1Vpp

Level: -7 ~ 8 Recording level control

Support 20dB Amp. for low level audio recording

Supports local and remote audio monitoring

Network

Protocol: TCP/IP, ARP, ICMP, DHCP, PPPoE,

and PPP

Line: 10/100Mbps Ethernet (RJ-45)

Simultaneous User Support over Network

Monitoring: Max. 5 users

Playback: Max. 5 users

Management and Firmware Upgrades

Remote system configuration via Network

Firmware upgrades via Network

Security

Password (User or Administrator Authentication)

IP filtering

Watermarking (For image copying)

System Requirements to run DVR Manager

(Remote viewer program)

PC Processor: Pentium III 500 and above

(Pentium IV 1.6Ghz recommended)

Ram: 128 MB and above (256 recommended)

OS: Windows 2000 / XP Pro

Power Supply (included)

Input: AC 100~240V, 50~60 Hz

Output: DC 12V, 5A

Power Consumption

Booting: Max. DC 12V ± 10%, 3.4A (40W)

ormal: DC 12V ± 10%, 2.0A (24W)

Environmental Spec

Operating: 41 ~ 113 degrees F.

Storage: -49 ~ 149 degrees F.

-- “Specifications are subject to change without notice” --

Application Service

eDVR Registration Service

Service that helps User find Dynamic IP easily at Dynamic IP Registration Server whe

DS412 is connected on xDSL or Cable Modem

eDVR Naming Service

Service that endows DS412 with Domain Name and maps between IP Address and Domai

ame

Hardware

32bit RISC Embedded processor (200MIPS)

Flash memory: 8Mbyte

RAM: 32Mbyte

OS: Embedded Linux

Storage Device

Int.: 2 HDD bays

Ext: 3 IEEE 1394 (FiWi) connection ports

Supports Disk Management Tool for all disks

(Reboot is required when HDD changed)

Total manageable capacity: 2 TB

Image Resolution Control

720X486, 720X243, 360X243

Image Compression

Compression Algorithm: Differential Wavelet

Compression Rate: 20:1 ~500:1

Average file size: 3 ~ 5KB (Standard Quality)

Video Channel

TSC or PAL video format are supporte

4Ch. analog video inputs via BNC connector

12Ch. IP video inputs via Network port

Recording Performance

(on 360X243)

Analog Ch:

Max. 60fps(NTSC) / 50fps(PAL) in total

Max. 30 fps (NTSC) per channel if 2ch used

Max. 15fps (NTSC) per channel if 4ch used

IP video Ch:

Max. 60fps in total

Max. 5fps(NTSC) per channel

Schedule Recording

Daily: Day / night / Four-segment daily

timetable

Weekly: Weekdays / Weekends

Status: Normal / Event

Matrix Digital Output Schedule

Daily: Day / night / Four-segment daily

timetable

Weekly: Weekdays / Weekends

Conditions: MD, sensor input, IP video events

Configurable Recording Conditions

Recording speed: None to 30 fps (11 Levels)

Image quality: 5 Levels

Event conditions: MD & sensor inputs, IP video

events

Pre / Post Alarm Recording

Pre Alarm Recording: 1 ~ 10 seconds

Post Alarm Recording: 1 ~ 30 seconds

Intelligent file system

Data-loss protection against power failure

Event Triggered Video Data Preservation

Event triggered data overwrite prevention

Text Data Recording

POS / ATM transaction information archived

along with corresponding video data

Text information allows direct access to

corresponding video data (Only possible

through DVR Manager program on PC)

RS-232, 230Kbps, Hardware flow control

Event Log Recording

Log archiving on HDD

Log search & monitoring via Network

Data (Video & Audio Clip) Back-up

External HDD: IEEE1394 (FiWi) or USB port

PnP Memory Stick: USB port

VHS Video Tape: Video output port for VCR

Backu

Notification: Dail

/ Weekl

/ Monthl
